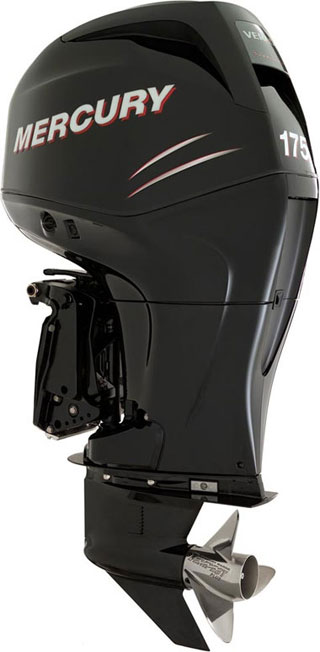

Mercury Verado Outboard Motors - Take Charge


Contact a Sales representative at: (501) 224-5900

Engine Specifications

HP/Kw @ Prop 175 / 130
Full throttle RPM 5800-6400
Cylinder Configuration 4 (in-line)
Displacement (L / CID) 105.7 / 1732
Bore and Stroke (in / mm) 3.23 x 3.23in
82 x 82mm
Fuel Induction System SmartCraft DTS 4 valves per cylinder dual overhead cam (DOHC)
Ignition SmartCraft PCM Digital Inductive
Fuel System Electronic Fuel Injection (EFI)
Alternator Amp 70 amp / 882 watt (Belt-Driven)
Cooling System Water-cooled with thermostat
Starting SmartCraft electric (turn-key)
Gearcase Ratio 2.08:1
Gear Shift SmartCraft DTS F-N-R
Steering Big Tiller Compatible
Mercury power steering (optional)
Trim System SmartCraft programmable
Exhaust System Though prop
Shallow water trim range (degrees) 20
Recommended Oil Mercury Verado Oil
Fuel Ethanol Tolerance 87 octane/up to 10% ethanol
Remote fuel tank optional Yes
Engine Protection Operator Warning System SmartCraft Engine Guardian
Compatible with Smartcraft Digital Technology Yes
Shaft Length 20 in (508 mm)
25 in (635mm)
Dry Weight * Lightest model available 510lbs / 231kg
